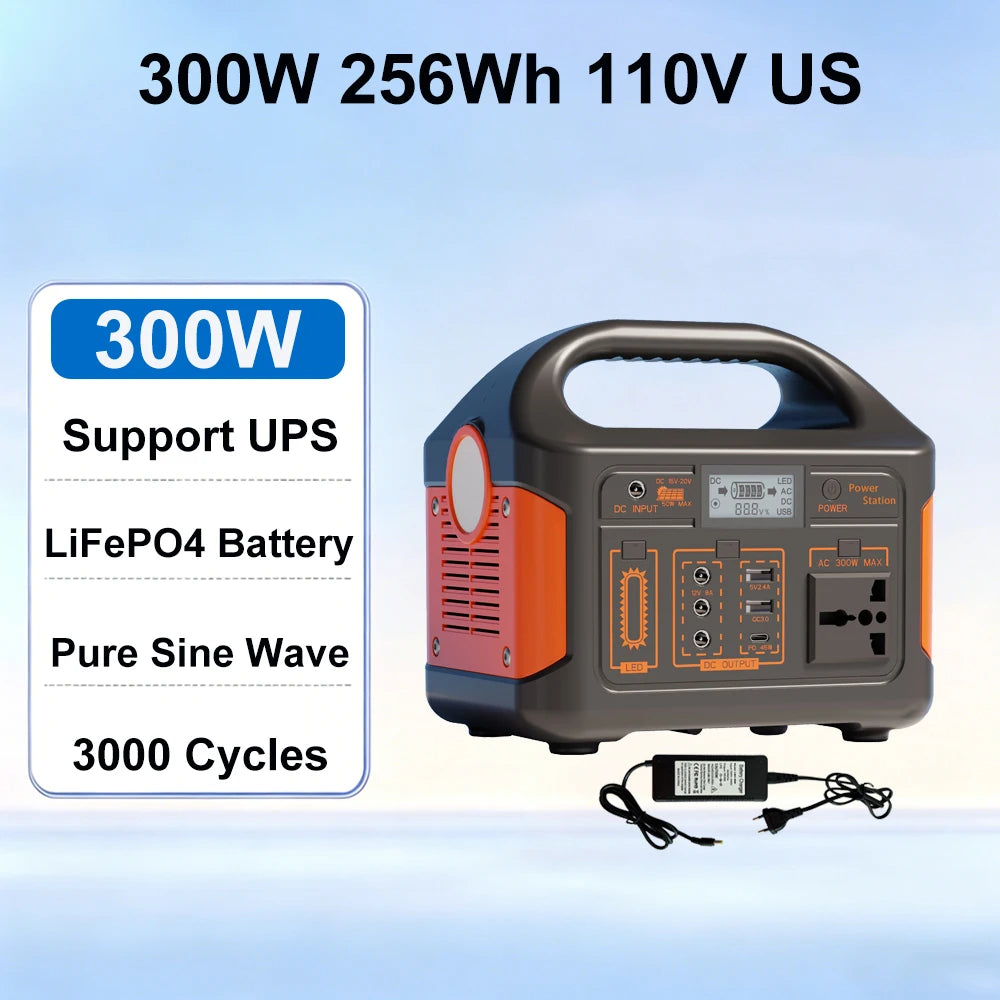

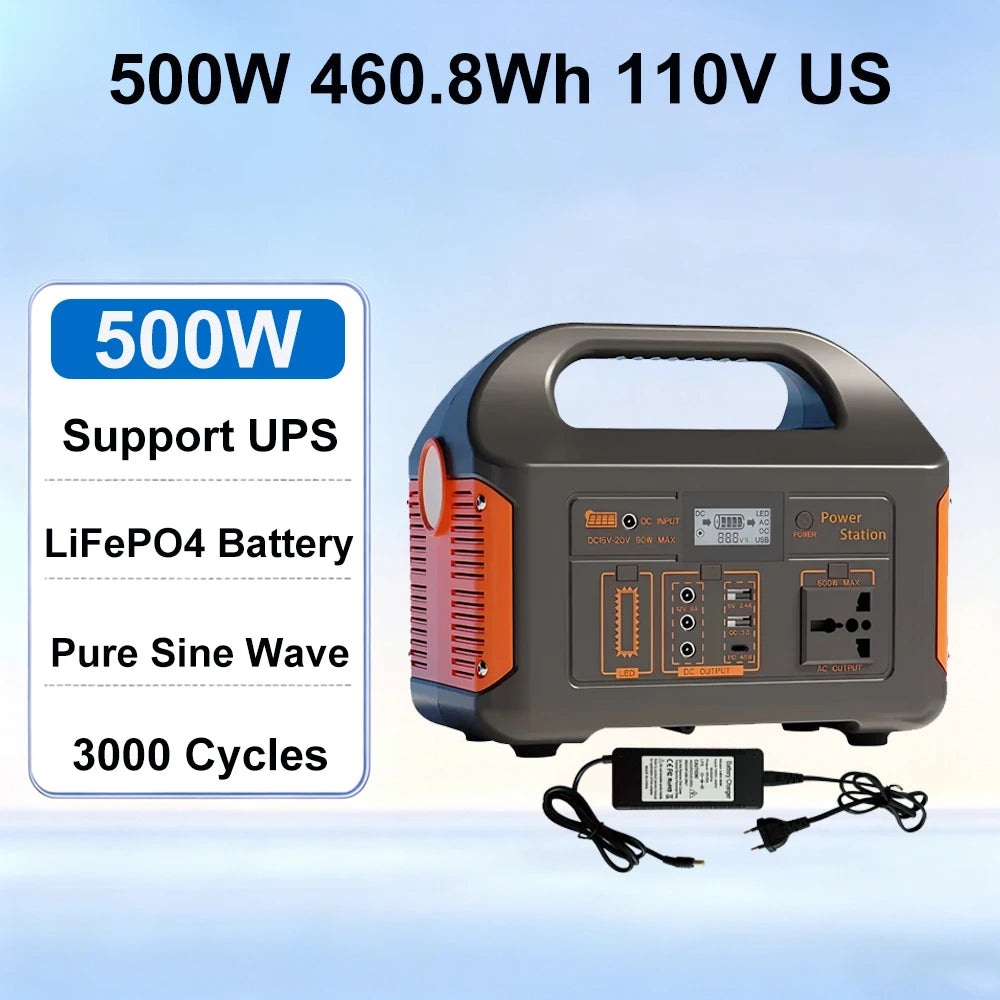

Rated Power |
300W |
500W |
Output Waveform |
Pure Sine Wave |
Pure Sine Wave |
AC Output Voltage |
110V ± 15% |
AC Output Frequency |
60Hz ± 2Hz |
Conversion Efficiency |
Maximum Value>90% |

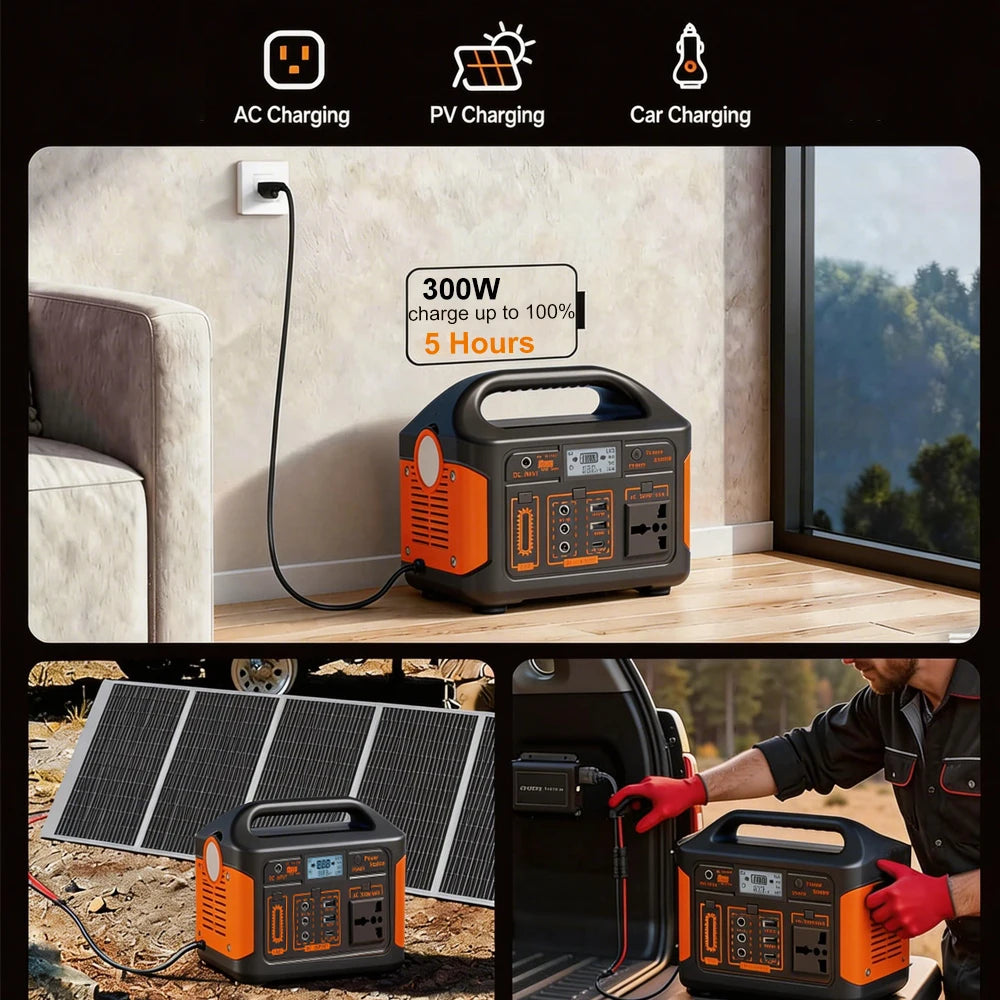

Charging Interface |
External Charger Port and Solar Panel Charging Port DC5521 * 1
(Built in solar intelligent controller)
|
AC Output Socket |
Universal Socket |
DC Output Voltage |

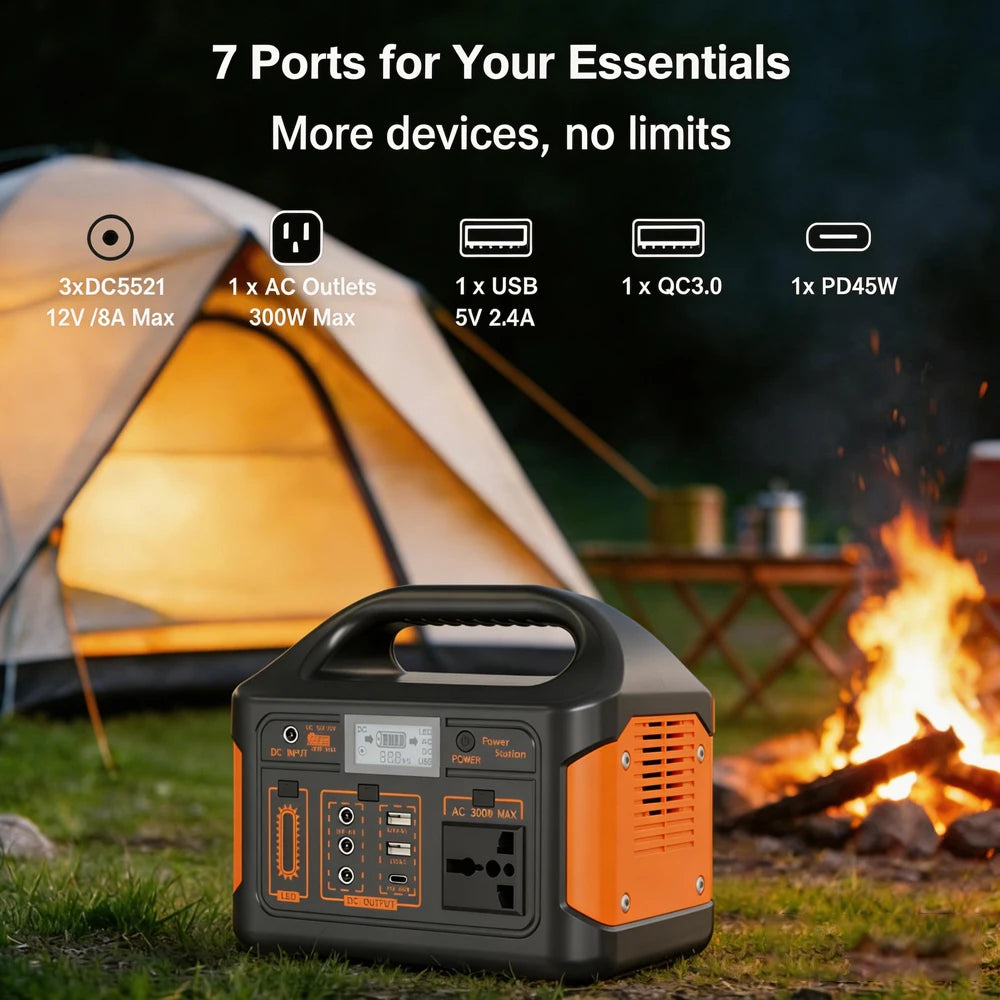

USB 5V 2.4A；QC3.0；PD45W；DC12V8A，3*DC5521 Port |
USB 5V 2.4A；QC3.0；PD45W；DC12V8A，3*DC5521 Port |
LED Light States |
LED high beam, low beam, high brightness, half light, flashing, LED light off 6 states |

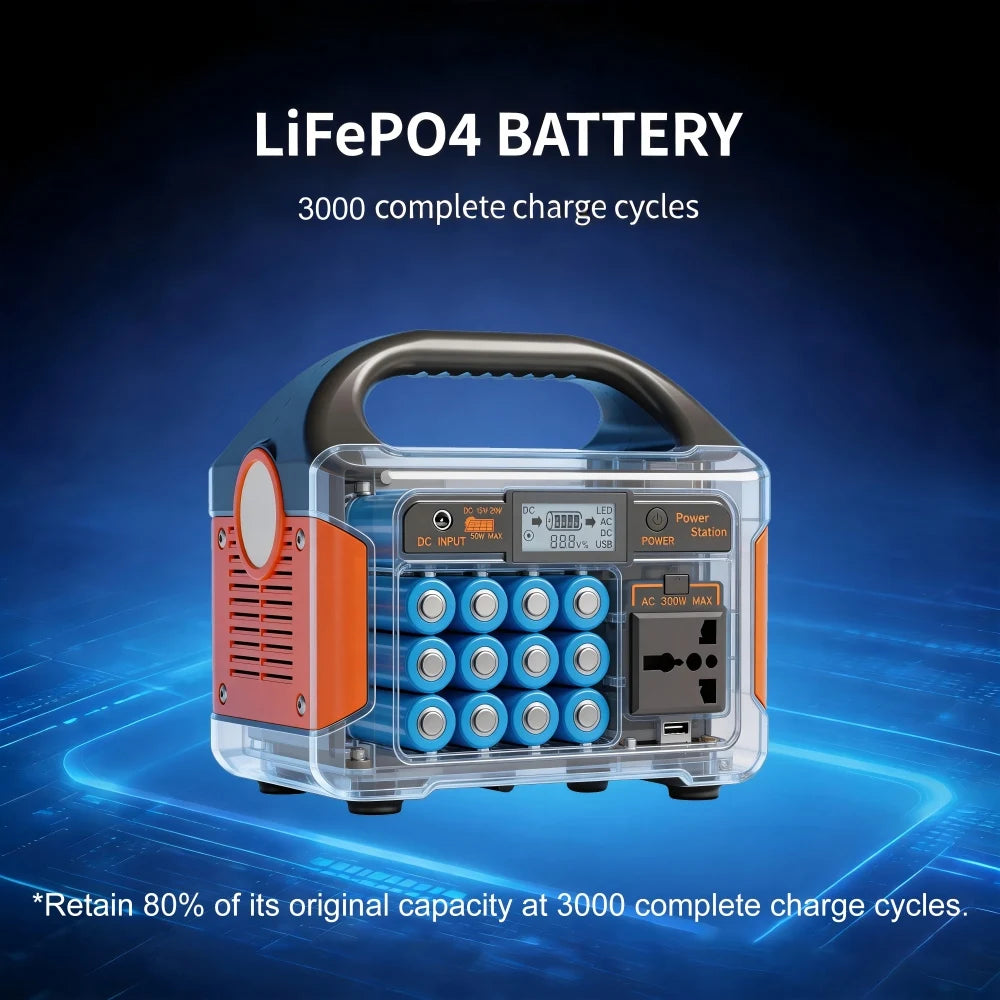

Battery Type |
LiFePO4 |
Battery Capacity |
12.8V 256Wh |
12.8V 460Wh |
Solar Panel Specifications |
15V-20V Maximum 50W (Optional) |
15V-20V Maximum 90W (Optional) |
Charging Current |
Maximum Value 2.5A |
Maximum Value 6A |
AC Charger Specifications |
14.6V 2A |
16V 5A |
AC Charger Charging Time |
After full discharge, battery capacity reaches 80% after 5 hours of charging |
LCD Display |
Battery capacity, battery voltage, charging status, discharge status |
Heat Dissipation |
Automatic cooling |
Protective Function |
Low voltage, over voltage, overload, over temperature, over current short circuit |
Operating Environment Temperature |
-10 ~ 40 ℃ |
Operating Environment Humility |
10 ~ 85% |
Storage Environment Humility |
5 ~ 90% |

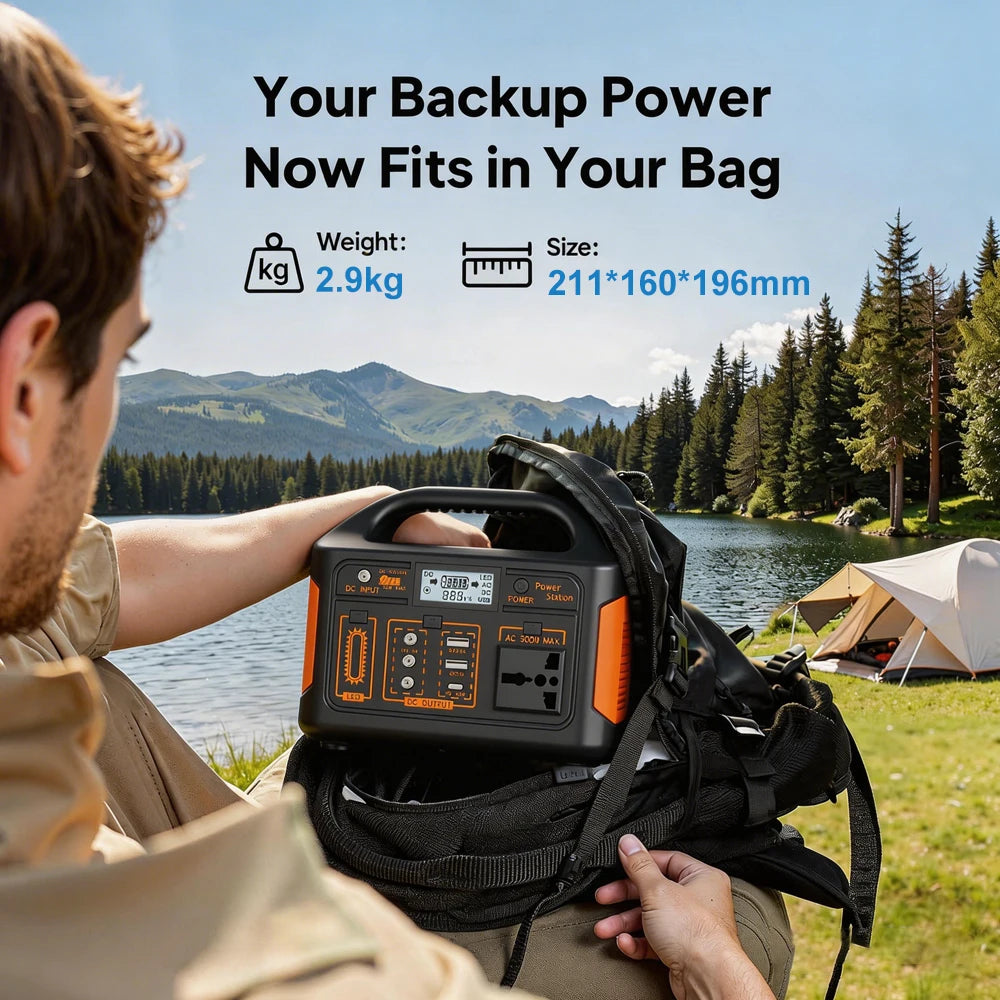

Net Weight(kg) |
≈2.9kg |
≈5.36kg |
Product Size D * W * H(mm) |
211*160*196 |
271*172*228 |
